Wire bar applicator with a film width of 180, 230 or 320 mm and available in ranges from 0 to 300 µm

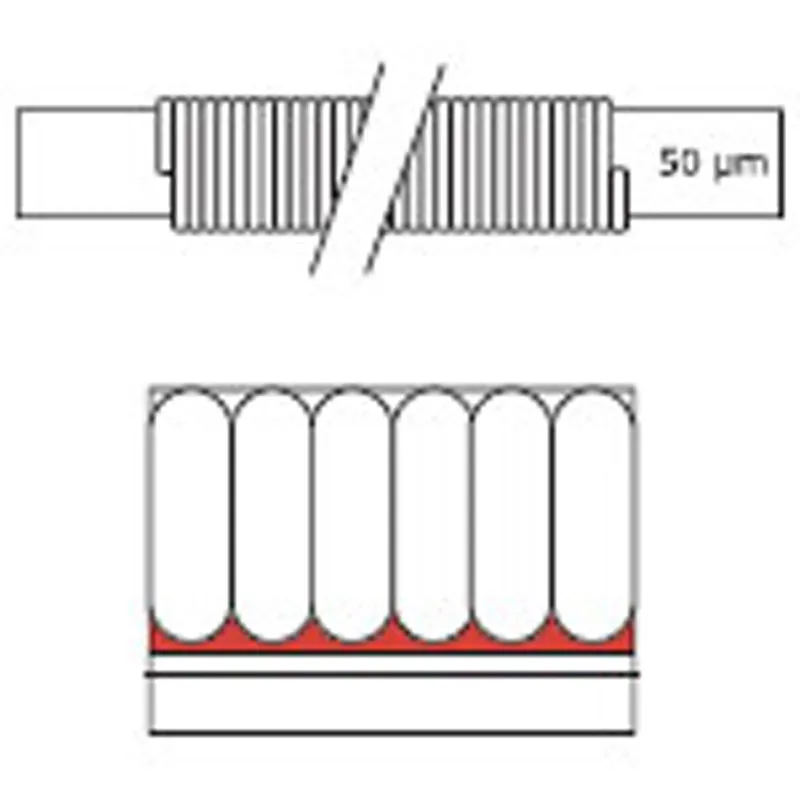

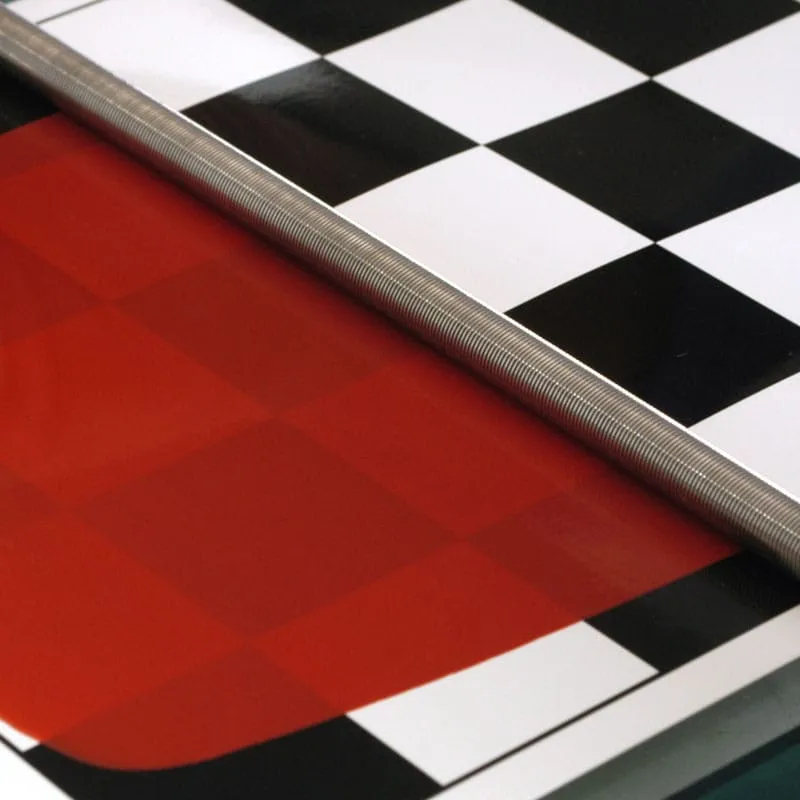

The Wire bar or spiral bar / drawdown rod applicator is ideal for applying a film on thin materials such as sheets or plastic. Also works on flexible substrates, and with motorized film applicators*. The high-grade stainless steel will not be affected by acid or base elements.

Models

180mm film width
230mm film width
320mm film width
0µm
SH0632
AB3742
AB3070
4µm
SH0168
SB3720
AB3050
6µm
SH0232
AB3721
AB3051
8µm
SH0262
AB3722
AB3052
10µm
SH0631
AB3723
AB3053
12µm
SH0676
AB3724
AB3054
14µm
SH0700
AB3725
AB3055
16µm
SH0728
AB3726
AB3056
18µm
SH0751
AB3743
AB3082
20µm
SH0799
AB3727
AB3057
24µm
SH0856
AB3728
AB3058
26µm
SH0897
AB3744
AB3083
28µm
SH0921
AB3745
AB3084
30µm
SH0941
AB3729
AB3059
32µm
SH0965
AB3746
AB3085
34µm
SH0978
AB3730
AB3060
36µm
SH0994
AB3747
AB3086
38µm
SH1018
AB3731
AB3061
40µm
SH1042
AB3732
AB3062
46µm
SH1091
AB3748
AB3087
48µm
SH8007
AB3749
AB3088
50µm
SH1144
AB3733
AB3063
56µm
SH1216
AB3734
AB3064
60µm
SH1231
AB3735
AB3065
66µm
SH1266
AB3750
AB3089
70µm
SH1280
AB3751
AB3094
76µm
SH1314
AB3736
AB3066
80µm
SH1341
AB3752
AB3095
88µm
SH1372
AB3753
AB3096
100µm
SH0326
AB3737
AB3067
120µm
SH0797
AB3738
AB3068
128µm
SH0919
AB3754
AB3097
150µm
SH1686
AB3739
AB3072
200µm
SH0329
AB3740
AB3069
300µm
SH0338
AB3755
AB3099
Custom
SH2005
AB3741
AB3071

Note
Wire bar coaters with starting art. code AB…. fit TQC/ TQC Sheen Automatic Film Applicator Models sold from 2012 and on. If you have an older model TQC Automatic Film Applicator, another type of wire bar applicator has to be used. Please contact us for availability.
Wire bar-coater 320mm, 4 µm
